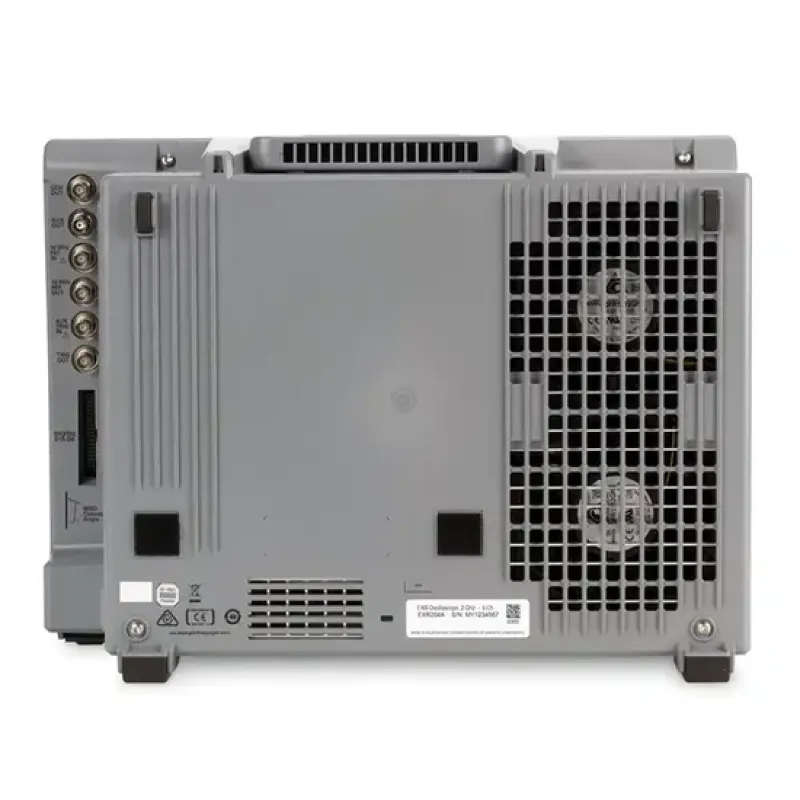

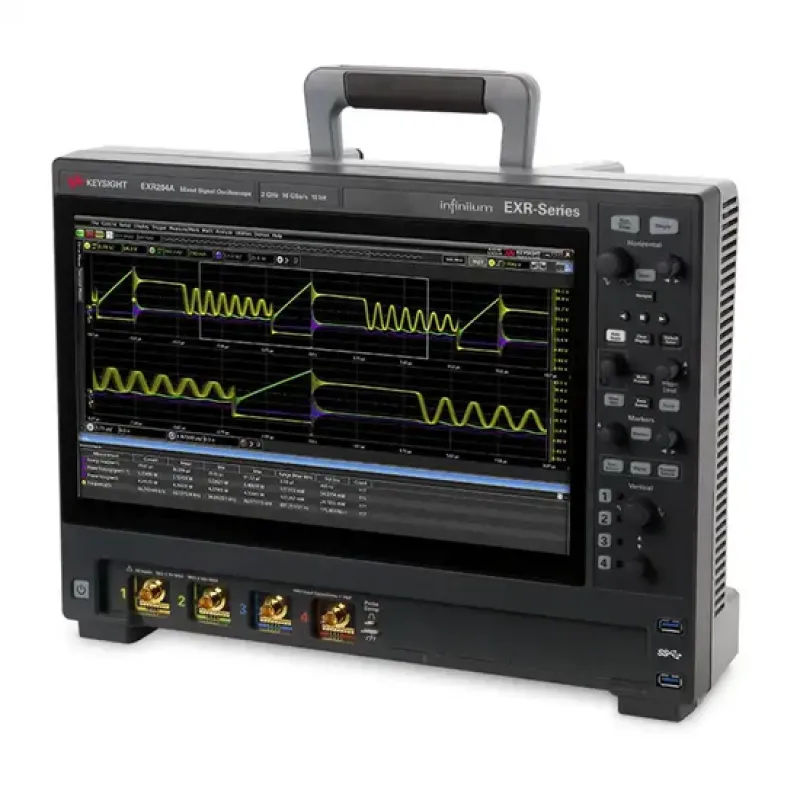

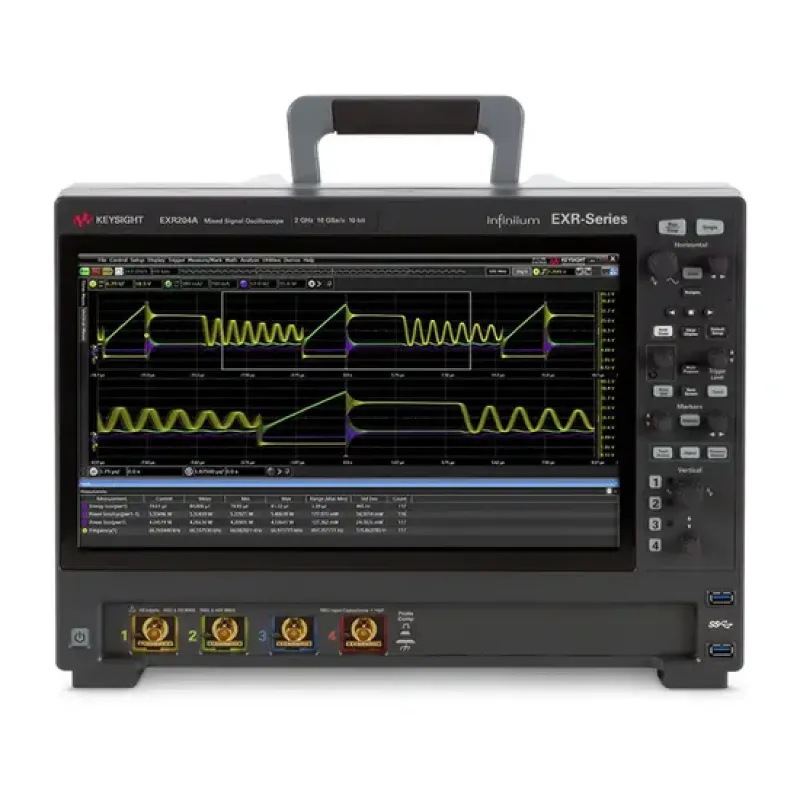

Keysight EXR204A Infiniium EXR Series Oscilloscope

The Keysight EXR204A from the Infiniium EXR series is a high-performance instrument with 2 GHz bandwidth on all four analog channels. It delivers fast testing speeds powered by ASIC technology and accurate measurements with an effective number of bits (ENOB) up to 9.0 and noise levels as low as 43 µV. The maximum memory depth is 1.6 Gpts.

Key Features of EXR204A

• 7-in-1 integration: Combines the functions of an oscilloscope, logic analyzer, protocol analyzer, digital voltmeter, frequency counter, frequency response analyzer, and arbitrary waveform generator.
• Fully upgradable: Allows for feature updates to adapt to changing needs.
• Intuitive interface: A 15.6-inch Full HD touchscreen with support for a second monitor.



Included in the Package

• One N2873A 500 MHz passive probe per channel
• Probe accessory kit
• Localized power cord
• Front-panel protective cover
• BNC calibration cable
• Keyboard and mouse
• Keysight I/O libraries and documentation
• 1-year factory calibration certificate

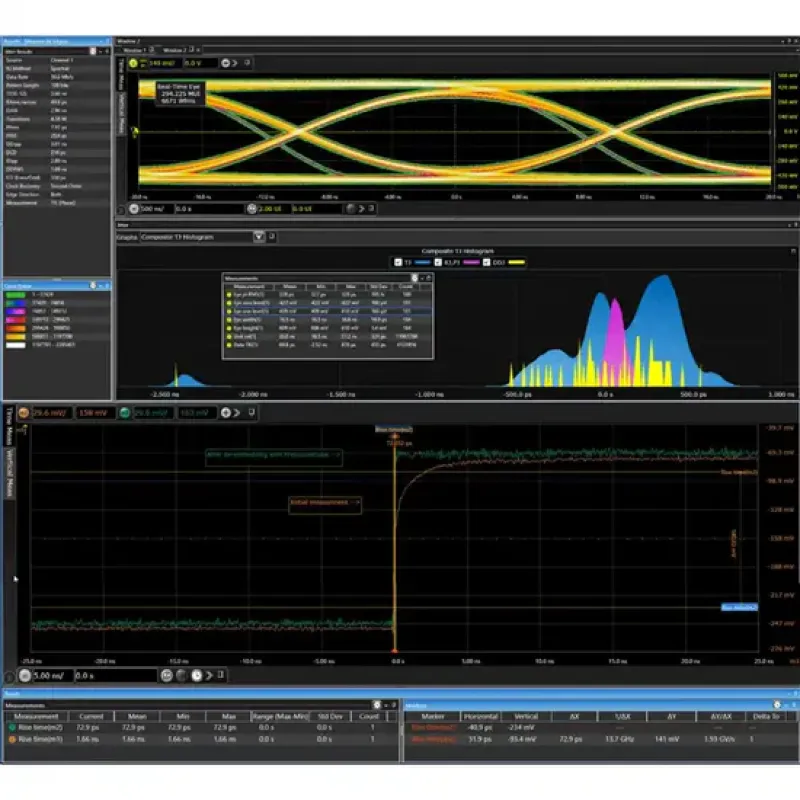

The EXR204A supports software applications for signal analysis, power testing, protocol decoding, and compliance testing.
