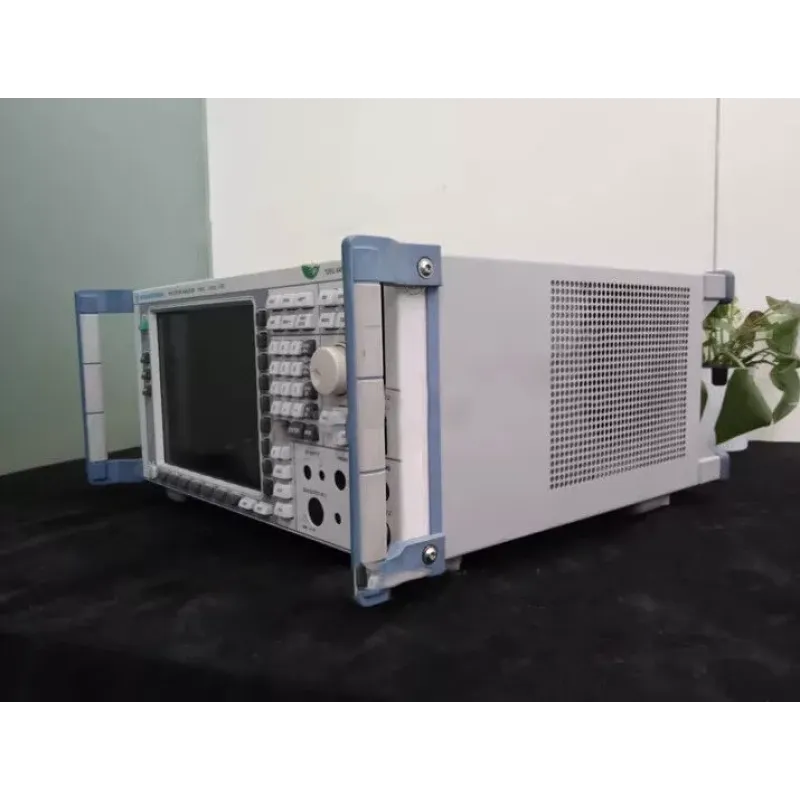

Rohde & Schwarz FSP3 Spectrum Analyzer

The Rohde & Schwarz FSP3 is a spectrum analyzer designed for general-purpose applications, covering a frequency range from 9 kHz to 3 GHz. It offers a variety of standard features and innovative measurement capabilities, making it suitable for both development and production environments.

Key Specifications:

• Frequency Range: 9 kHz to 3 GHz
• Resolution Bandwidth: 1 Hz to 10 MHz
• Displayed Average Noise Level: -155 dBm (1 Hz)
• Phase Noise: -113 dBc (1 Hz) at 10 kHz offset

Notable Features:

• High Measurement Speed: Capable of performing up to 100 measurements per second in manual mode.
• Digital Filters: Equipped with digital filters that provide sweep times approximately 2.5 times faster than comparable analog filters.
• RMS Detector: Includes an RMS detector for stable and reproducible results, even with complex signals like CDMA.
