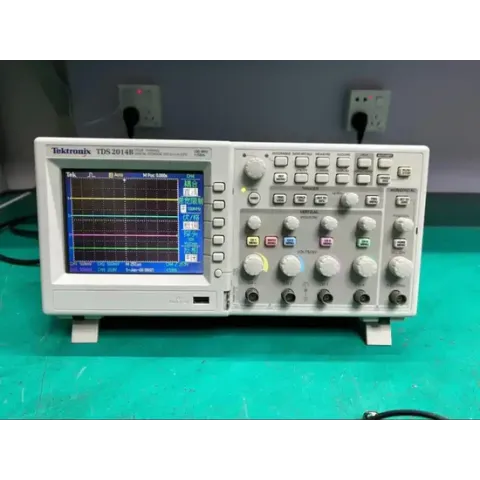

Tektronix TDS2014B Oscilloscope

The Tektronix TDS2014B oscilloscope is a four-channel digital storage oscilloscope (DSO) with a 100 MHz bandwidth and a maximum sampling rate of 1 GS/s per channel. It is designed for accurate real-time signal analysis and is suitable for various applications, including design, education, manufacturing, and maintenance.

Main Technical Specifications:

• Bandwidth: 100 MHz
• Sampling Rate: 1 GS/s per channel
• Number of Channels: 4 analog
• Record Length: 2.5K points per channel
• Display: Color LCD screen
• Interfaces: USB host and USB device for data storage and PC connectivity



Features:

• Ease of Use: Classic analog-style controls and an intuitive interface reduce learning time and improve operational efficiency.
• Automatic Measurements: Supports 12 automatic measurements, including frequency, period, and amplitude, simplifying signal analysis.
• Mathematical Functions: Built-in addition, subtraction, multiplication, and Fast Fourier Transform (FFT) functions allow spectral signal analysis.
• Flexible Data Transfer: USB ports enable easy data storage, PC connectivity, and direct printing on compatible printers.

The Tektronix TDS2014B oscilloscope is a reliable tool for engineers and technical specialists requiring precise and efficient signal analysis in various fields of electronics and communications.
