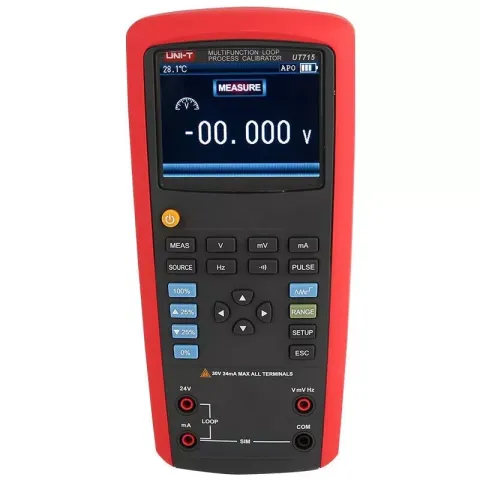

UNI-T UT715 Calibrator

The UNI-T UT715 calibrator is a portable high-precision instrument designed for measuring and generating DC current and voltage signals in industrial processes. It provides an accuracy of up to 0.02%, making it a reliable tool for calibration, repair, and maintenance of current loops.

Main Features of UNI-T UT715

• Measurement and Generation:
  • DC voltage: measurement up to 30V, generation up to 10V.
  • DC current: measurement and generation up to 24mA.
  • Frequency: measurement from 1Hz to 100kHz, generation from 0.2Hz to 20kHz.
  • Pulses: generation from 1 to 10,000Hz.
• Accuracy:
  • High measurement and generation accuracy: ±0.02% + 2 units for voltage and current.
  • Display resolution: 20,000 counts.
• Additional Features:
  • Step and ramp signal generation for simulating various conditions.
  • Automatic power-off with an adjustable timer for battery saving.
  • Adjustable backlight and contrast for working in different lighting conditions.
  • Ability to save and recall settings for faster repetitive tasks.
  • USB interface for computer connection and data transfer.
  • Provides 24V power to the measured loop while simultaneously measuring current, simplifying work with two-wire transmitters.
• Power Supply and Dimensions:
  • Powered by six rechargeable AA batteries (1.2V).
  • Dimensions: 195mm x 95mm x 58mm.
  • Weight: 650g.

Package Contents

The UNI-T UT715 package includes test leads, a USB cable, a power adapter, and a user manual. This calibrator is a reliable tool for professionals involved in calibration, repair, and maintenance of current loops in various industrial applications.
