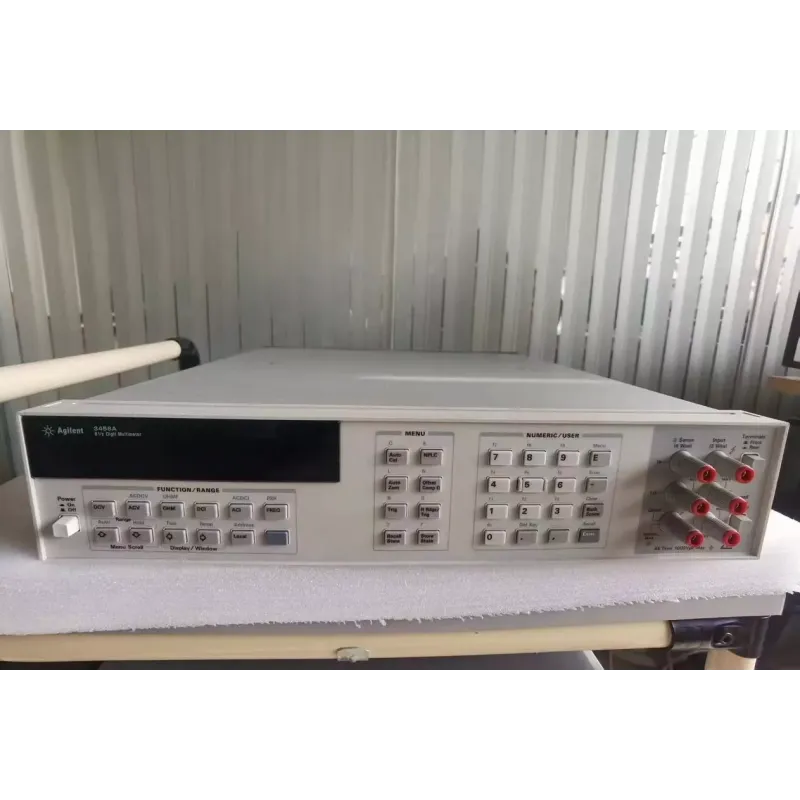

Agilent 3458A DMM (with Option 002)

Agilent 3458A is a high-precision 8.5-digit digital multimeter, known for its exceptional accuracy and measurement speed. It is widely used in research laboratories, production testing environments, and calibration facilities.

Main Specifications:

• Resolution: 8.5 digits
• Basic DC voltage accuracy: 0.0008% per year (8 ppm); with Option 002 — 0.0004% per year (4 ppm)
• Maximum measurement speed: up to 100,000 readings per second
• DC voltage measurement range: from 0.1 V to 1000 V
• AC voltage measurement range: from 10 mV to 1000 V
• Resistance measurement range: from 10 Ω to 1 GΩ
• DC current measurement range: up to 1 A
• AC current measurement range: up to 1 A
• Frequency measurement range: from 1 Hz to 10 MHz

Features:

• Auto-calibration: self-adjustment and self-check functions ensure high stability and measurement accuracy.
• Flexible measurements: supports seven measurement functions, including DCV, ACV, DC, AC, resistance, and frequency.
• High speed and accuracy: ability to choose between high-speed measurements for maximum performance and high-accuracy mode for precision applications.

Option 002:

Option 002 provides the 3458A multimeter with a highly stable reference voltage source with an error of 4 ppm per year, enhancing long-term measurement stability and accuracy.

With its capabilities and reliability, the Agilent 3458A with Option 002 is an ideal choice for applications requiring high precision and measurement stability.
