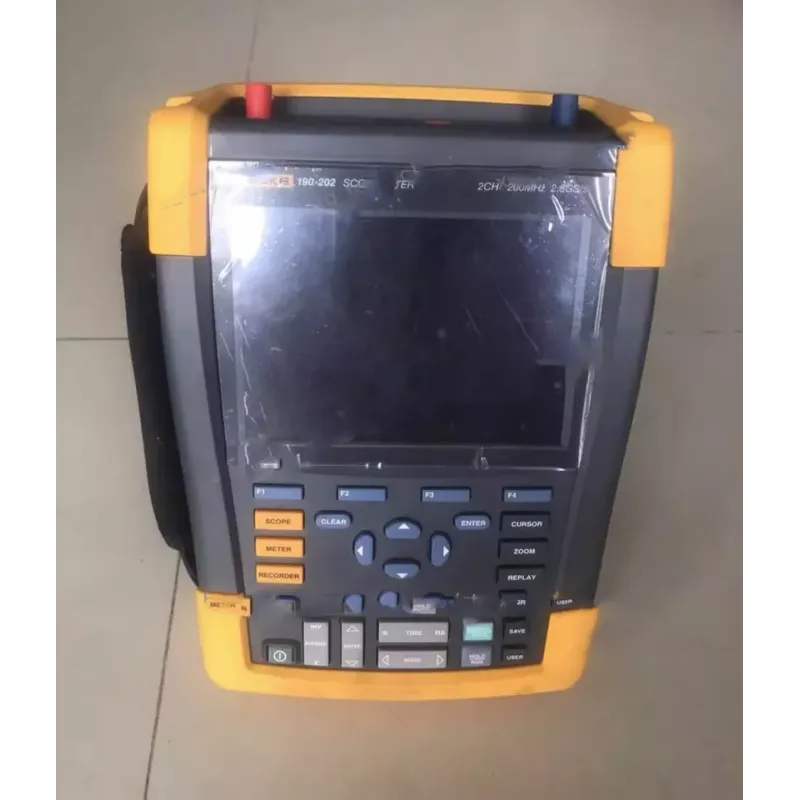

Fluke ScopeMeter 190-202 Oscilloscope

The Fluke ScopeMeter 190-202 is a portable two-channel oscilloscope with a 200 MHz bandwidth, designed for use in harsh industrial environments. It ensures measurement safety in CAT III 1000 V and CAT IV 600 V categories.

Key Features:

• Frequency Range: 200 MHz
• Number of Channels: 2
• Sampling Rate: 2.5 GS/s
• Memory Depth: 10,000 samples per channel

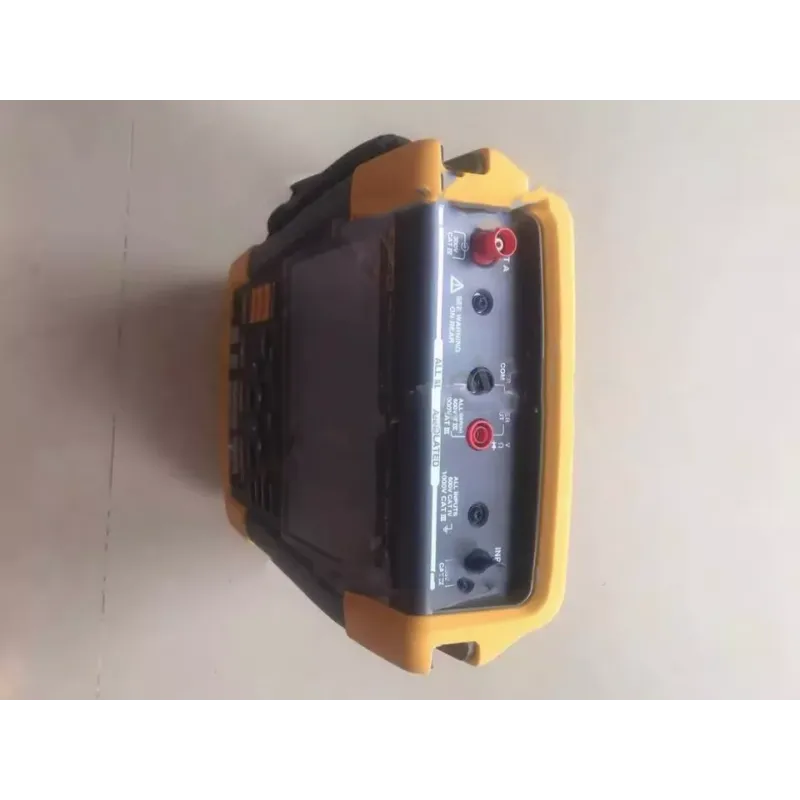

• Inputs: 2 oscilloscope inputs and 1 multimeter input
• Input Isolation: Up to 1000 V CAT III / 600 V CAT IV
• Time Base Range: From 2 ns to 2 min/div
• Input Sensitivity: From 2 mV to 100 V/div
• Trigger Types: Connect-and-View™, free run, single shot, edge, delay, dual slope, video, video line, pulse width, N-cycle
• Pulse Capture: 8 ns
• Automatic Measurements: 30 parameters
• ScopeRecord Mode: 30,000-point memory

Multimeter Functions:

• Multimeter Inputs: 4 mm banana jacks
• Maximum Resolution: 5000 counts
• Measurements: DC and AC voltage, resistance, continuity, current, temperature

Display:

• Size: 153 mm, color LCD

Operating Specifications:

• Operating Temperature: 0°C to 40°C (with battery); 0°C to 50°C (without battery)
• Storage Temperature: -20°C to +60°C
• Operating Altitude: Up to 2000 m for CAT IV 600 V, CAT III 1000 V

Dimensions and Weight:

• Dimensions: 270 x 190 x 70 mm
• Weight: 2.2 kg

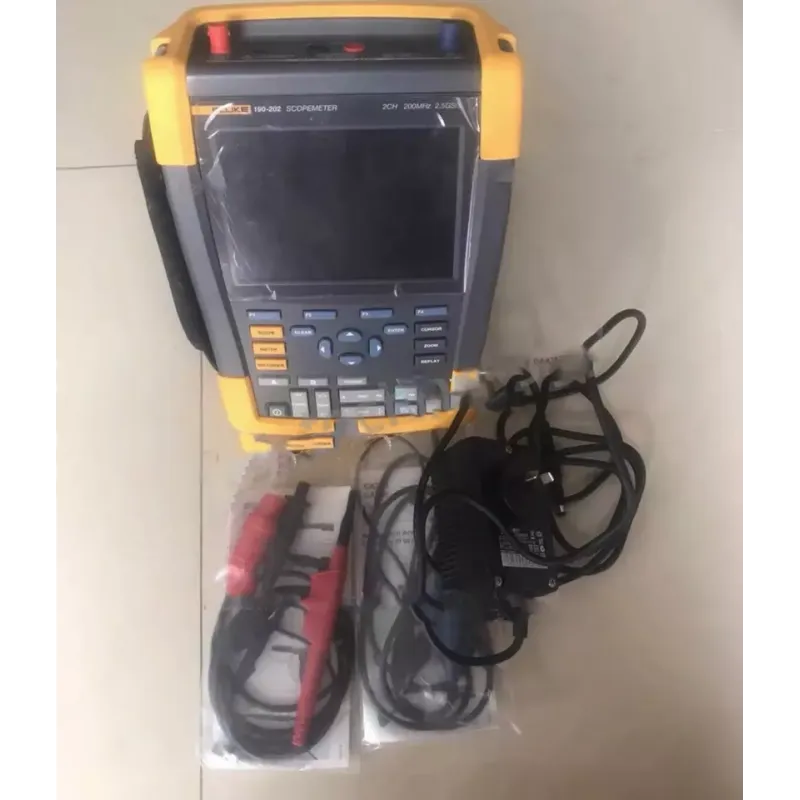

Package Contents:

• Fluke 190-202 Oscilloscope
• VPS410 Voltage Probes (red and blue)
• TL175 TwistGuard™ Test Leads (red and black)
• BC190 Charger
• BP290 Lithium-Ion Battery (2400 mAh)
• Hand Strap
• Hanging Strap
• Multilingual User Manual on CD
• Demo Version of FlukeView ScopeMeter® Software
• USB Cable
