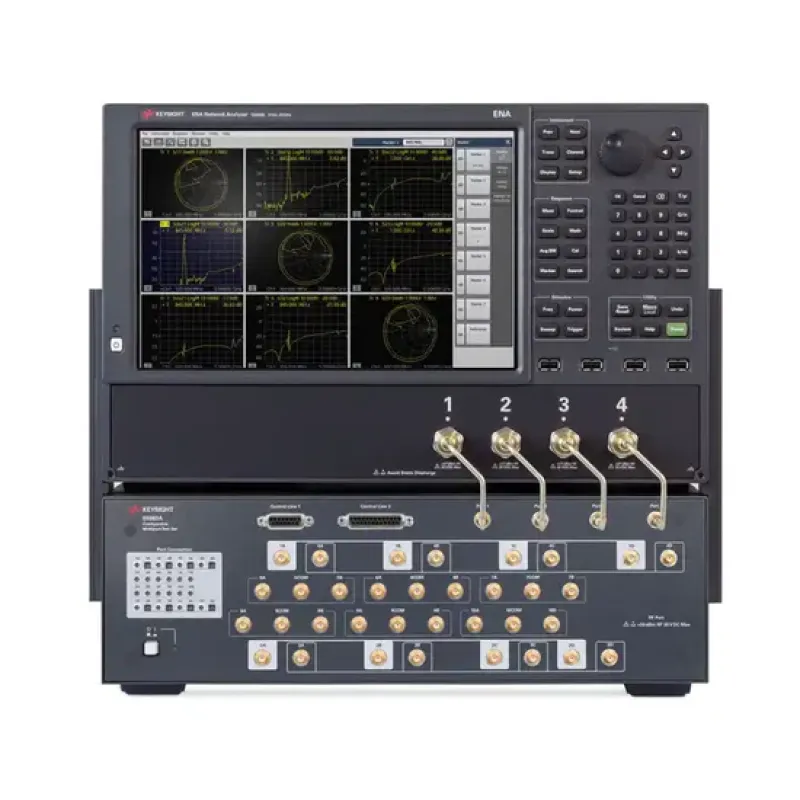

Keysight E5080B ENA Vector Network Analyzer

Keysight E5080B ENA is a high-performance vector network analyzer designed for comprehensive measurements in the RF and microwave domains. With extensive functionality and integrated capabilities, this device is an ideal solution for various testing and research needs.

Main Features:

• Frequency Range: models covering 9 kHz to 4.5/6.5/9/14/20 GHz, with an extension option up to 53 GHz.
• Port Configuration: available in 2-port and 4-port models for different device types.
• Dynamic Range: up to 140 dB for precise measurements in challenging conditions.
• Integrated Features:
  • DC sources and biasing modules for testing active components.
  • Pulse generators and modulators for pulsed measurements.
  • Spectrum analysis without the need for additional equipment.
  • Noise figure measurements for assessing amplifier performance.
• Software Support: compatible with time-domain analysis, mixer testing, and more.
• User Interface: easy to use and compatible with other PNA series analyzers.



Applications:

• Testing passive components: filters, antennas, cables.
• Amplifier analysis: gain and loss measurements.
• Testing mixers and frequency converters.
• Research in RF and microwave domains.



Keysight E5080B ENA is a versatile solution for RF and microwave measurements, combining flexibility, integration, and high performance.
